Portfolio Category: Transformers

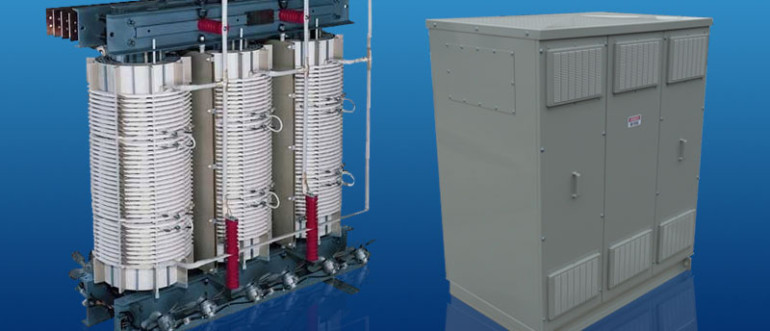

NCB Dry Type Transformers have excellent High Temperature qualities with UL approved 220 °C rated Insulation System. Magnetic Cores: Cores are fabricated from: Precision-Cut, Burr-Free, Grain Oriented, High Electrical Grade Silicon Steel. These cores are designed for Low Losses and to reduce the users operating cost. Coils: Precision-Hand Made, Barrel Wound Coils are built with…

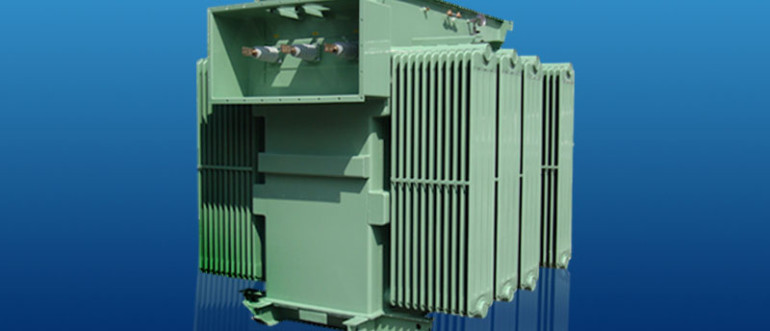

NCB offers a complete line of Oil Submersed Transformers ranging from :10 to 100,000 KVA, 69,000 Volts max, Single or Three Phase, 65 °C or 55 °C Winding rise temperature, 60 Hz or 50 Hz used for Exportation, and Insulation Temperature System of 105°C. AEC manufactures all types of Transformer Styles that include, but are…

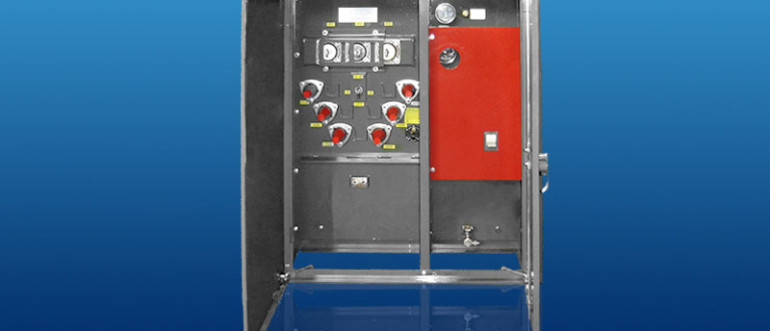

Tamper resistant tank design with compartments assembled as integral units for flush mounting on a flat, rigid surface (generally on a concrete pad). The entire unit may be rolled, skidded, jacked, or hoisted by its lifting hooks into place. The Pad-Compartment design is used to step down high voltage from distribution power supplies via underground…

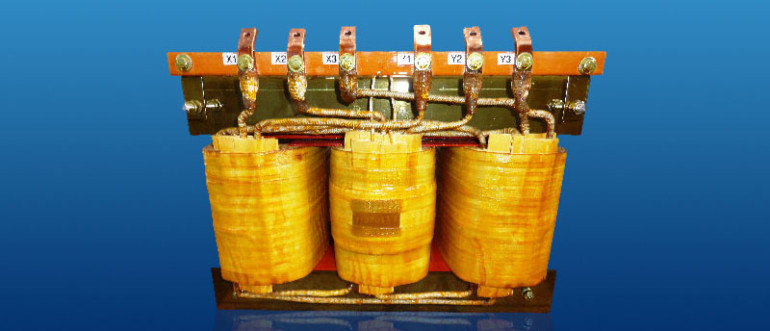

When used in electrical systems as filters or to limit short circuits to a safe value, Dry & Oil Type Reactors are called Current Limiting Reactors. Reactors are placed on SCR Drives or Inverters to absorb electrical noise created by the drive called notching. Pulse distortion and harmonics are bi-directional protecting filtering devices. which solve…
